PTGFH-T7201 高壓反應釜控制器

分享到微信

×
高壓反應釜控制器(High Pressure Reactor Controller)
在線客服
產品詳情

產品特點:

1. 操作方便,可靠性,多種尺寸可選;

2. 界面美觀大方,多組數據一屏顯示,操作方便,觸摸屏產品中英文可選

3.加熱采用模糊PID控制,多組PID區間控制,具有更小的溫度超調,更快的穩定時間,更好的控溫精度;

4.掉電記憶功能、預約啟動功能、自動鎖屏功能;

5.階段密碼控制功能;

6.歷史數據、歷史曲線存儲、查看、導出、打印功能。

7.可保存查看報警記錄,可拓展遠程控制功能。

Product features

1. Easy to operate, high reliability;

2. Aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, multiple sizes and touch screen has Chinese and English language optional;

3. Heating with fuzzy PID control, multi-group PID interval control, with smaller temperature and humidity overshoot, faster stabilization time, better precision of temperature and humidity control;

4. Power-off memory function,appointment start function and automatic lock screen function;

5. Stage password control function;

6. History data, history curve storage, view, export, print function;

7. Alarm records can be saved and viewed, and expand the remote control function.





技術參數Technical parameter

產品型號

Product model

PHGFH-T7001

MTRFS-D10K0-T

顯示方式

Display mode

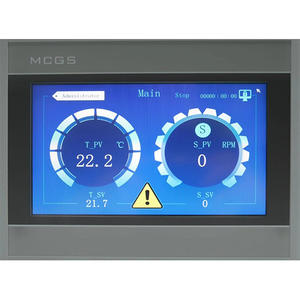

7IPS觸摸屏

7 "IPS touch screen

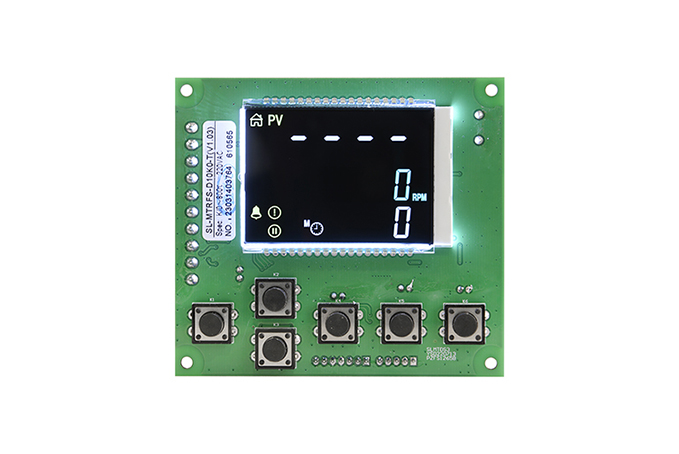

筆端液晶

VA LCD

開孔尺寸

Hole size

187*111mm

裸板Bare plate

溫度傳感器

Temperature sensor

K型熱電偶或PT100

K-type thermocouple or PT100

雙路K型熱電偶

Two-way K-type thermocouple

測溫誤差

Temperature measurement error

<滿量程×0.3%Full scale×0.3%

控溫范圍

Temperature control range

PT100RT+5~400.0℃;

 K:RT+51000.0℃

RT+5~800℃

控溫精度

Temperature control accuracy

±0.5℃

±0.5℃

控制模式

Control mode

可選擇定值模式或530段程序

 fixed value mode or 5 groups of 30-segment programs

可選擇定值模式或30段程序

fixed value mode or 30-segment program

測壓范圍

Pressure control range

-0.1Mpa60.0Mpa


控速范圍

Speed control range

20-2000rpm

控速精度Speed control accuracy

±1RPM

電源電壓

Supply voltage

100~240VAC/ 5060Hz

220±10%VAC/ 5060Hz

工作環境

Working condition

環境溫度:-1060℃   相對濕度:< 90%RH(不結露)

Environment temperature-1060℃

Relative humidity< 90%RH (No dew)




PTGFH-T7201 高壓反應釜控制器
PTGFH-T7201 高壓反應釜控制器

PTGFH-T7201 高壓反應釜控制器

分享到微信

×
高壓反應釜控制器(High Pressure Reactor Controller)
66082722-8000
在線客服
產品詳情

產品特點:

1. 操作方便,可靠性,多種尺寸可選;

2. 界面美觀大方,多組數據一屏顯示,操作方便,觸摸屏產品中英文可選

3.加熱采用模糊PID控制,多組PID區間控制,具有更小的溫度超調,更快的穩定時間,更好的控溫精度;

4.掉電記憶功能、預約啟動功能、自動鎖屏功能;

5.階段密碼控制功能

6.歷史數據、歷史曲線存儲、查看、導出、打印功能。

7.可保存查看報警記錄,可拓展遠程控制功能。

Product features

1. Easy to operate, high reliability;

2. Aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, multiple sizes and touch screen has Chinese and English language optional;

3. Heating with fuzzy PID control, multi-group PID interval control, with smaller temperature and humidity overshoot, faster stabilization time, better precision of temperature and humidity control;

4. Power-off memory function,appointment start function and automatic lock screen function;

5. Stage password control function;

6. History data, history curve storage, view, export, print function;

7. Alarm records can be saved and viewed, and expand the remote control function.





技術參數Technical parameter

產品型號

Product model

PHGFH-T7001

MTRFS-D10K0-T

顯示方式

Display mode

7IPS觸摸屏

7 "IPS touch screen

筆端液晶

VA LCD

開孔尺寸

Hole size

187*111mm

裸板Bare plate

溫度傳感器

Temperature sensor

K型熱電偶或PT100

K-type thermocouple or PT100

雙路K型熱電偶

Two-way K-type thermocouple

測溫誤差

Temperature measurement error

<滿量程×0.3%Full scale×0.3%

控溫范圍

Temperature control range

PT100RT+5~400.0℃;

 K:RT+51000.0℃

RT+5~800℃

控溫精度

Temperature control accuracy

±0.5℃

±0.5℃

控制模式

Control mode

可選擇定值模式或530段程序

 fixed value mode or 5 groups of 30-segment programs

可選擇定值模式或30段程序

fixed value mode or 30-segment program

測壓范圍

Pressure control range

-0.1Mpa60.0Mpa


控速范圍

Speed control range

20-2000rpm

控速精度Speed control accuracy

±1RPM

電源電壓

Supply voltage

100~240VAC/ 5060Hz

220±10%VAC/ 5060Hz

工作環境

Working condition

環境溫度:-1060℃   相對濕度:< 90%RH(不結露)

Environment temperature-1060℃

Relative humidity< 90%RH (No dew)
