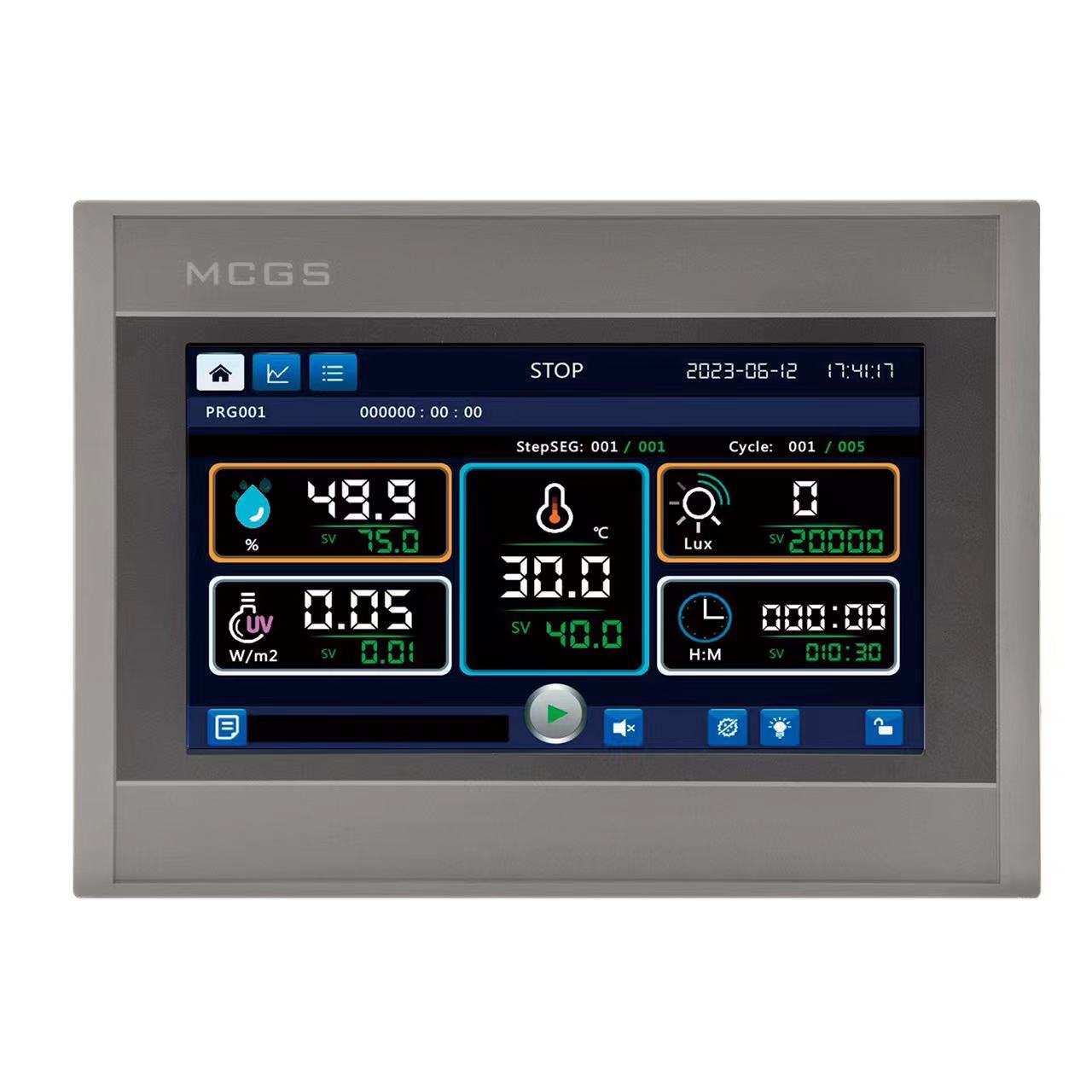

PHYPCH-T7106-Ti藥品穩定箱控制器

分享到微信

×
適用范圍:藥品穩定性試驗箱及其它環境試驗設備
在線客服
產品詳情

產品特點Product features

1. 高分辨率觸摸屏,界面美觀大方,多組數據一屏顯示,操作方便,多種尺寸可選,中英文可選;

2. 智能模糊PID控制,結合變頻壓縮機、電子膨脹閥自動控制系統,在降低整機功耗的同時,大大提高了溫濕度的控制精度和范圍;

3. 可設定100段編程模式,999周期,100種模式可選;

4. 可選擇多種化霜方式,光照紫外控制模式;

5. 具備三級權限管理和操作日志查詢功能,提高實驗的安全性和可追溯性;

6. 具備預約運行功能、計時功能和掉電記憶功能;

7. 控制器具有屏幕鎖定功能,避免人為觸摸操作失誤;

8. 可遠程調試和升級程序;

9. 具有實時曲線查看和歷史數據存儲與導出功能,最多可儲存10000000歷史數據,可擴展遠程通訊及U盤、打印機等功能。

Product features

1. High resolution touch screen, aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, multiple sizes and Chinese and English language optional;

2. Intelligent fuzzy PID control, combined with the inverter compressor and electronic expansion valve automatic control system, while reducing the power consumption of the whole machine, greatly improve the temperature and humidity control accuracy and range;

3. 100-segment programming mode, 999 cycles, multiple modes optional;

4. Multiple modes of defrosting and illumination and UV control;

5. Three-level permission management and operation log function to improve the safety and traceability of the experiment;

6. It has the function of appointment running, timing and power-off memory;

7. The controller has screen locking function to avoid misoperation;

8. The ability to remotely debug or upgrade programs;

9. It has functions of real-time curve view and historical data storage and export, it can store more than 10 million pieces of data, and can extend functions such as remote communication, USB flash disk and printer.



技術參數Technical parameter



產品名稱

Product name



全功能藥品穩定性試驗箱控制器

Versatile medicine stability testing chamber controller

產品型號

Product model

PHYPCH-T7106-Ti

顯示方式

Display mode

7IPS觸摸屏

7" IPS touch screen

安裝尺寸

Installation size

192mm*138mm

控溫范圍

Temperature control range

-40.0200.0℃

控溫精度

Temperature control accuracy

±0.01℃

濃度范圍

Concentration range

0-20.0%/0-5000PPM

照度控制范圍

Illumination control range

0-50000lux/0-100level/0-6

0-50000lux/0-100level/0-6Level

紫外度控制范圍

UV control range

0-200.0μW/c/0-2.00W/

濃度、照度傳感器類型

Concentration,illumination sensor type

0~5V內電壓信號(可選)

Voltage signal within 0~5Voptional

計時范圍

Timing range

定值模式、100程序/1~100/0~999周期

0999小時59分鐘

Fixed value mode, 100 program modes /1~100 segment/0~99 cycles

0 ~ 999 hours59 minutes

輸出容量

Output capacity

加熱外接固態:DC12V,30mA;

制冷繼電器≤8A

照明、滅菌繼電器≤3A;

化霜電磁閥、旁路電磁閥、風機繼電器≤ 5A;

Heat SSR: DC12V, 30mA;

Refrigeration relay ≤8A

Lighting, sterilization relay ≤3A;

Defrosting solenoid valve, bypass solenoid valve, fan relay ≤ 5A

電源電壓

Supply voltage

100240VAC/5060Hz

工作環境

Working condition



環境溫度:-1060℃

相對濕度:< 90%RH(不結露)

Environment temperature-1060℃

Relative humidity< 90%RH (No dew)
