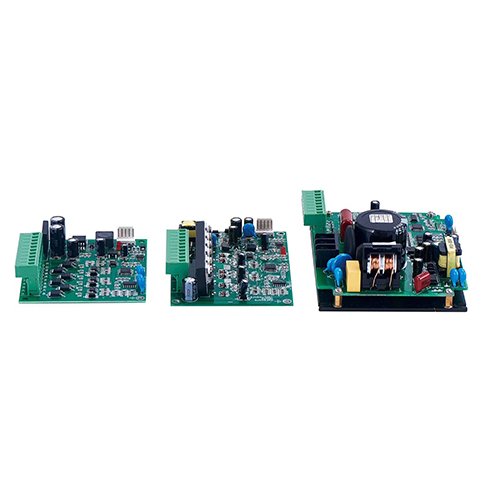

產品型號

Product model

MC-N10-M

LMC-N31-M

MMC-N30-M

HMC-N31-M

HSC-N20-M

電機類型

Motor type

24V直流無刷電機24V BLDC

24V直流無刷電機24V BLDC

24~60V直流無刷電機

24~60V BLDC

310V直流無刷電機310V BLDC

310V伺服電機

310VServo Motor

電機功率

Motor power

≤20W

≤100W

≤400W

≤400W

≤400W

控速范圍

Speed control  range

20~6000RPM

1-1500RPM

控速精度

Speed control accuracy

±1RPM

測速誤差Speed measurement error

＜滿量程×0.1%

＜Full scale×0.1%

電源電壓

Supply Voltage

24VDC

24VDC或or18VAC

24~60VDC

100~240VAC/50～60Hz

工作環境

Workingcondition

環境溫度：-10～60℃   相對濕度：< 90%RH（不結露）

Environment temperature: -10～60℃ Relative humidity: < 90%RH (No dew)

性能特點Performance Features

1、采用速度環和電流環雙閉環控制;

2、PI自適應調節控速;

3、轉速比、電機極對數、正反轉、加減速度時間、電機功率可設;

4、功率模塊故障，電機堵轉，霍爾錯誤，母線電壓欠壓、過壓報警功能.

1、Using speed loop and double closed-loop control;

2、PI adaptive speed control;

3、Speed ratio, motor pole pairs, forward and reverse rotation, acceleration and deceleration speed time, motor power can be set;

4、Power module failure, motor blocking, Hall error, bus voltage under-voltage, over-voltage alarm function.
