產品特點:
1. 高分辨率觸摸屏,界面美觀大方,多組數據一屏顯示,操作方便,中英文可選;
2. 智能模糊控制,精確控制風速;
3. 具備自動升降電機功能;
4. 可兼容各種風速和壓差傳感器;
5. 可選擇直流無刷電機或交流電機控制系統,兼容性更強;
6. 實時監控風機、滅菌燈、過濾器等運行狀態和累計運行時間,并有報警功能;
7. 具備三級權限管理和操作日志查詢功能,增強實驗的安全性和可追溯性;
8. 具備預約運行功能、計時功能;
9. 控制器具有屏幕鎖定功能,避免人為觸摸操作失誤;
10. 可擴展遠程通訊等功能,提高實驗的便捷性和安全性。
Product features:

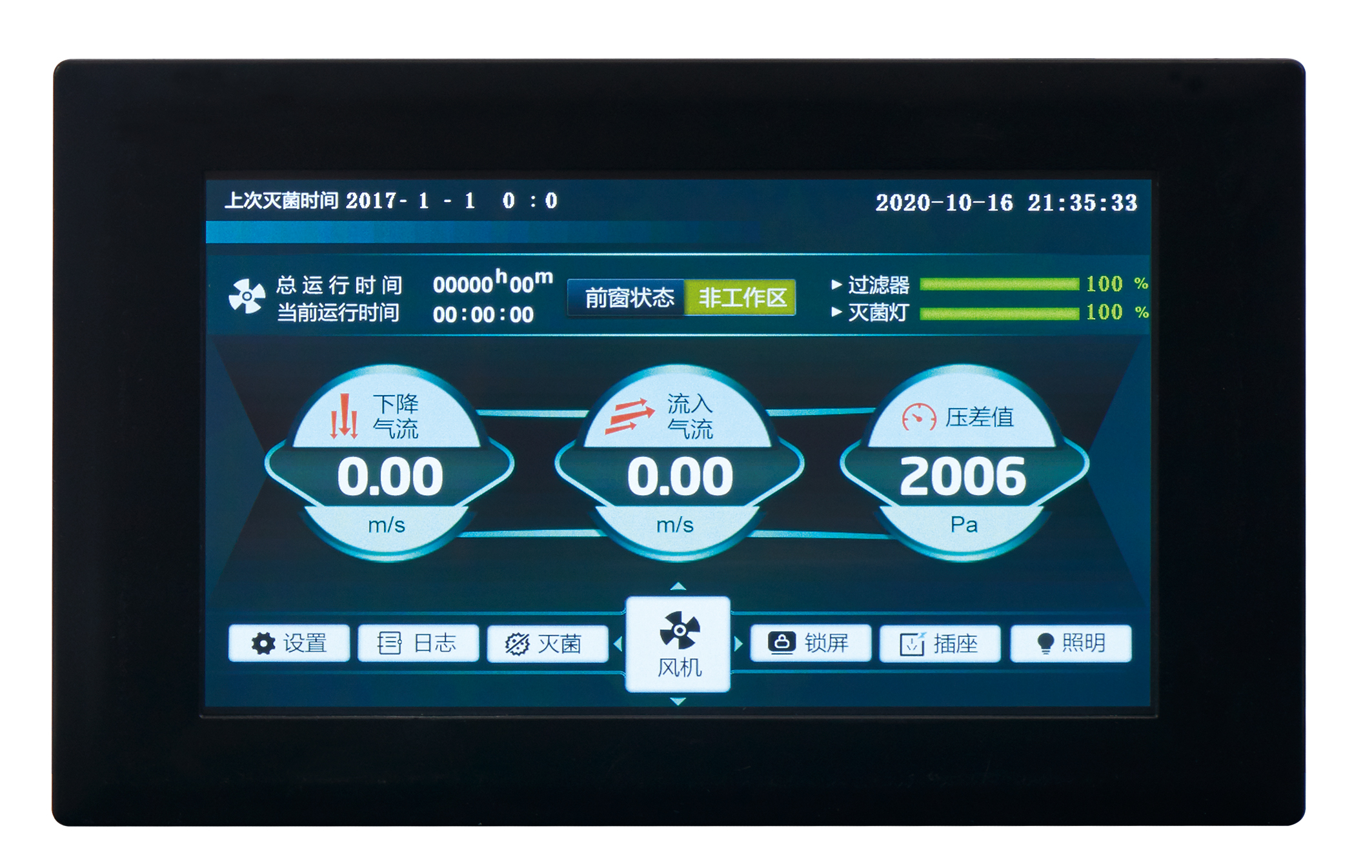

1. High resolution touch screen, aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, Chinese and English language optional;
2. Intelligent fuzzy control, accurate control of air speed;
3. Automatic lifting motor function;
4. Compatible with various wind speed and differential pressure sensors;
5. optional BLDC motor or AC motor control system for better compatibility;
6. Real-time monitoring of the running status and accumulated running time of fans, sterilization lamps, filters and alarm function;
7. Three-level permission management and operation log function to improve the safety and traceability of the experiment;
8. Have the function of appointment running and timing.
9. The controller has screen locking function to avoid misoperation;
10. It can extend remote communication and other functions to improve the convenience and security of the experiment.
技術參數Technical parameters:
產品名稱 Product name | 生物安全柜控制器 Bio-safety Cabinet Controller | ||
產品型號 Product model | SWDHQ-T20-T | SWAHQ-T20-T | |
顯示方式 Display mode | 7寸觸摸屏 7 "touch screen | ||
安裝尺寸 Installation size | 196mm*112mm | ||
控制電機類型 Control motor type | 直流無刷電機 BLDC motor | 交流電機 AC motor | |
傳感器類型 Sensor type | 風速傳感器:DC12V供電,0.5~4.5V信號 Air speed sensor: DC12Vpower supply,0.5~4.5V signal 壓差變送器:0~5V信號(可選) Air pressure transmitter: 0~5VSignal (optional)
| ||
控制精度 Control accuracy | ≤0.01m/s | ||
風速測量范圍 Air pressure measurement range | 0.00~5.00m/s | ||
電源電壓 Supply voltage | 100~240VAC/50~60Hz | ||
工作環境 Working condition
| 環境溫度:-10~60℃ 相對濕度:< 90%RH(不結露) Environment temperature:-10~60℃ Relative humidity:< 90%RH (No dew) |
產品特點:
1. 高分辨率觸摸屏,界面美觀大方,多組數據一屏顯示,操作方便,中英文可選;
2. 智能模糊控制,精確控制風速;
3. 具備自動升降電機功能;
4. 可兼容各種風速和壓差傳感器;
5. 可選擇直流無刷電機或交流電機控制系統,兼容性更強;
6. 實時監控風機、滅菌燈、過濾器等運行狀態和累計運行時間,并有報警功能;
7. 具備三級權限管理和操作日志查詢功能,增強實驗的安全性和可追溯性;
8. 具備預約運行功能、計時功能;
9. 控制器具有屏幕鎖定功能,避免人為觸摸操作失誤;
10. 可擴展遠程通訊等功能,提高實驗的便捷性和安全性。
Product features:
1. High resolution touch screen, aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, Chinese and English language optional;
2. Intelligent fuzzy control, accurate control of air speed;
3. Automatic lifting motor function;
4. Compatible with various wind speed and differential pressure sensors;
5. optional BLDC motor or AC motor control system for better compatibility;
6. Real-time monitoring of the running status and accumulated running time of fans, sterilization lamps, filters and alarm function;
7. Three-level permission management and operation log function to improve the safety and traceability of the experiment;
8. Have the function of appointment running and timing.
9. The controller has screen locking function to avoid misoperation;
10. It can extend remote communication and other functions to improve the convenience and security of the experiment.
技術參數Technical parameters:
產品名稱 Product name | 生物安全柜控制器 Bio-safety Cabinet Controller | ||
產品型號 Product model | SWDHQ-T20-T | SWAHQ-T20-T | |
顯示方式 Display mode | 7寸觸摸屏 7 "touch screen | ||
安裝尺寸 Installation size | 196mm*112mm | ||
控制電機類型 Control motor type | 直流無刷電機 BLDC motor | 交流電機 AC motor | |
傳感器類型 Sensor type | 風速傳感器:DC12V供電,0.5~4.5V信號 Air speed sensor: DC12Vpower supply,0.5~4.5V signal 壓差變送器:0~5V信號(可選) Air pressure transmitter: 0~5VSignal (optional)
| ||
控制精度 Control accuracy | ≤0.01m/s | ||
風速測量范圍 Air pressure measurement range | 0.00~5.00m/s | ||
電源電壓 Supply voltage | 100~240VAC/50~60Hz | ||
工作環境 Working condition
| 環境溫度:-10~60℃ 相對濕度:< 90%RH(不結露) Environment temperature:-10~60℃ Relative humidity:< 90%RH (No dew) |
